ECUMaster MFD15
- Produktinformasjon
Produktinformasjon
52mm Can-Bus multi display. Device in cooperation with Ecumaster and Can Checked.
KEY FEATURES | |
Wireless internet access – Connect to your smartphone for setup, customization | |
Can-Bus – Access to our complete Can Bus database (TRI Files) | |
Compact – 52mm installation diameter and only 12.5mm installation depth actually fits everywhere | |
Additional entrances – Connect additional sensors to the 6 analog inputs | |
Preset alarms – Ready-made warnings can be easily activated and also customized. For example, get a big warning if the exhaust gas temperature is over 900 degrees. | |
Online logging – ( Additional license required)Log your data with your smartphone and save the log for later analysis | |
Different views: -6-fold -4-fold -double value -double bar -circular display -single pointer -Double value plus bar -More gauges… Performance Meter, Gear Gauge | |
Online DSS – oDSS – A completely new feature of our MFD15 Gen2 is access to the device via WLAN. So you no longer need a laptop/PC for the settings on your display. Here you can set up your display completely, log values (license required), upload your own start image and also update the display. | |
Supported values – Many customers always ask: “Which values can I request from my control unit”. The answer: ” ALL “. Our MFD15 is compatible with ISO 11898-2 and SAE J2284. | |
The control unit manufacturers themselves determine which values are sent via the CAN bus interface. Documentation is important here – possibly even in the form of a DBC file that can be imported via our DSS . You can also access our extensive list of already implemented controllers. These can be found in the download area . A total of up to 64 sensors can be queried if the manufacturer supports this. | |
Data available in the broadcast as well as OBD2 queries via Can Bus (11bit/29bit) are implemented. Special protocols such as UDS are also available. | |
Included as standard are:
|
- Relaterte produkter
- Varemerker
Relaterte produkter


Varemerker
1.995,00 NOK
(inkl. mva)
1.596,00 NOK
(eks. mva)
Interconnector EMU_Classic Nissan RB(20/25/26)/SR20(76pin)
.jpg)











15.990,00 NOK
(inkl. mva)
12.792,00 NOK
(eks. mva)
Ecumaster EMU Black Pnp Lotuss 2ZZ ECU (for DBW version)



.jpg)






775,00 NOK
(inkl. mva)
620,00 NOK
(eks. mva)

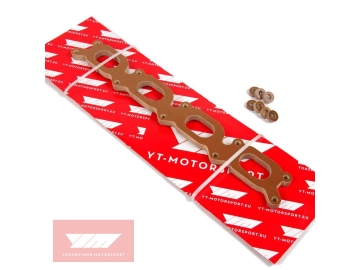

Phenolic spacer for Audi 2.5 5-cylinder TFSI engine TTRS(CAPA/CAPB)
