Fits your standard Aftermarket Fuel Cell Lowest weight "drop-in surge tank" available Integrated 2 liter Fuel Surge Tank function Single 7/8 AN-8 or AN-10 fuel outlet Steady flow even well over 1400hp All fittings included - including everything Made in Sweden 100% E85 Proof
Use with PWM control, combined with the CFC Unit it is an effective solution to prevent emerging heat when running numerous fuel pumps.
This is a 24 bolt fuel cell fill plate replacement that contains a built-in Fuel Surge Tank for single or dual internal fuel pumps, such as DW300, DW400, Ti Automotive (Walbro) GST450, Ti Automotive (Walbro) GST 520, etc.

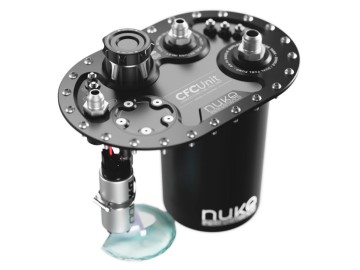

The Nuke Performance "Competition Fuel Cell Unit", the CFC Unit is a fill plate replacement for fuel cells from market leading manufacturers including ATL, FuelSafe, Jaz, Harmon, Pyrotect and several others. It has a 6*10" design with the standardized 24 bolt pattern to fit most manufacturers' fuel cells.
Combine the two internal fuel pumps into one 7/8 AN -8 / AN-10 outlet, both fittings are included. This Fuel Surge Tank is able to deliver steady fuel flow even over 1400hp.
Fits Deatschwerks DW400 in a single or dual setup
Single or dual Ti Automotive / Walbro GST 450 / GST 525
All 39mm fuel pumps such as AEM 320L E85 and DW300
100% E85 Proof design and functionality
The Nuke Performance CFC Unit is made to be a replacement unit for the 24 bolt pattern fuel cell fill plate, it gives you a lightweight and space-efficient installation with minimum fuel piping and easy-to-use setup.
The well known electrical connectors make it possible to choose from almost any pickup fuel pump and within the Swirl Pot we have our well-known billet bracket, but in this unit, you get both the bracket for 39mm fuel pumps as well as the bigger one for DW400.
With our Fuel Surge Tank function of the CFC Unit, you minimize the risk when running at low fuel level, that the system does not cope with the extremely hard driving such as drifting, drag racing and track days where you can exceed 2g, which could result in fuel loss.
The Fuel Surge Tank unit works as a buffer so the fuel pumps are always supplied with fuel for high outputs.
Delivered with everything you need for a 1+1 or a 1+2 fuel pump installation and with both AN-8 and AN-10 fitting for the fuel line. It also comes with an AN-6 fitting with a roll-over valve for ventilation.
Designed to stand up to the destructive properties of alcohol fuels, including methanol and ethanol.
Technical information : • CNC manufactured from aluminium alloy 6063. • Stainless steel bolts for long lasting function and appearance. • FST Unit holds a volume of approximately 2 liters. • Delivered with 1x 3/4 AN-6 vent fitting 1 x 3/4 AN-8, 1 x 7/8 AN-8 fitting and 1 x 7/8 AN-10 fitting. • 3/4 UNF Ports, available to AN-6, AN-8 or AN-10 line. • 7/8 UNF Port, available to AN-8, AN-10, AN-12 line. • Billet aluminium 6*10" plate with standard 24 bolt pattern. • All fittings and washers you need are included. • Minimum mounting depth of 219mm. • Laserengraved.
Measurements : Length : 295 mm Width : 194 mm Height : 261 mm Weight : 1934 g
Mounting dimensions : Minimum mounting depth : 219 mm Maximum mounting depth : 320 mm ** Dimension : 6x10" 24 bolt pattern
* All measurements including the supplied fittings and fill cap. ** If deeper mounting is required, adjust the pickup pump bracket and hose between pump and surge tank to enable universal depth.
