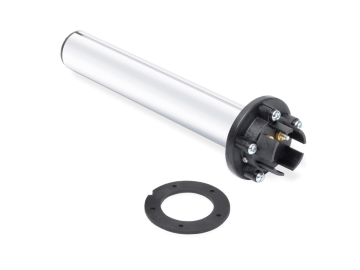

Pyrotect fuel level sending unit fits the Nuke Performance CFC Unit. The sending units can be installed in all standard and custom fuel bladders and can also be custom ordered to fit any size fuel cell or tank.
0-90 Ohms fuel level sending unit available with our without fuel gauge that fits standard SAE 5-bolt mounting pattern. Fits most common fuel cells including Pyrotect, ATL, Fuel Safe, Harmon, Premiere, Jaz etc and is the perfect match to the Nuke Performance Competition Fuel Cell Unit, the drop in fuel pump hanger with integrated surge tank that mounts to any 24 bolt 6x10" fuel cell. Ordered with our without fuel level gauge.
0 Ohm : empty
90 Ohm : full
0-90 Ohms / 76-6 Ohms / 240-33 Ohms, contact us for more information.
Approved for petrol, methanol, ethanol and E85. Available in several different lengths, choose size when placing order. If ordered together with a fuel cell we will make sure that you get the right one delivered with your order.
Fits fuel cells provided by Nuke Performance:
| 150-FLS-08 : 203 mm / 8" ||Pyrotect 8 gallon fuel cell |
| 150-FLS-09 : 228 mm / 9" ||Pyrotect 12 gallon fuel cell |
Pyrotect 15 gallon fuel cell
Pyrotect 22 gallon fuel cell
ATL 45 liter saver cell
ATL 60 liter saver cell
ATL 80 liter saver cell
Nuke Performance 40 liter aluminium fuel cell
Nuke Performance 60 liter aluminium fuel cell
| 150-FLS-10 : 254 mm / 10" ||Pyrotect 10 gallon fuel cell |
Pyrotect 18 gallon fuel cell
ATL 40 liter saver cell
| 150-FLS-12 : 305 mm / 12" ||Pyrotect 17 gallon fuel cell |
| 150-FLS-13 : 330 mm / 13" ||Pyrotect 24 gallon fuel cell |
| 150-FLS-16 : 406 mm / 16" ||Pyrotect 26 gallon fuel cell |
