Gen-V WG40 Comp-Gate40 14psi Black
Gen-V WG40 Comp-Gate40 14psi Black
Turbosmart

Gen-V WG40 Comp-Gate40 14psi Black

40mm

• Maksimal flyt • Vannkjølt • Roterende toppen

EAN: 9329677018646

5.199,00 NOK (inkl. mva)
5.678,01 NOK Ikke medlem: 5.199,00 NOK

4.159,20 NOK (eks. mva)
4.542,41 NOK

SKU: TS-0552-1012

På lager På lager .

Del produkt på

The GenV WG40 CompGate40 External Wastegate is a Motorsport-proven, cost-effective external wastegate – The Highest Flowing Wastegate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV Range has more features, options and performance than any other gate. The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Available In
BlackBlueRedPurple & Sleeper colours
Optional Wastegate Position Sensor Upgrade
Compressed Gas (ex: Co2) Version
Motorsport Version (CFD driven Heat sink design)
HP (High-Pressure Version) Up to 50psi
eWG (Electronic Actuated) Version

Features
Class Leading, Thermal Performance
Class Leading, CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps



Wastegate Gen-V Comp-Gate 40

Turbosmart Gen-V WG40 Comp-Gate40 er en kostnadseffektiv, høy ytelse, 40 mm ekstern wastegate designet for montering på applikasjoner der høy strømning og pålitelighet er et krav.

Generasjon 5 er mekanisk tilpasningsdyktig, har ekstrem varmebestandighet og en førsteklasses flyt for optimal kontroll og levetid.

En øyeblikkelig utskiftbar oppgradering til 4. generasjon Turbosmart wastegate. Har et unikt vrielås-system, variabel topp og bunn, V-bånd, vannkjøling, 1/8 "NPT-tilkoblinger og et fjærsett er inkludert.

Produktfunksjoner
• Vannkjøling
• Svingbar topp
• V-båndstilkoblinger
• Lett avtakbar topp

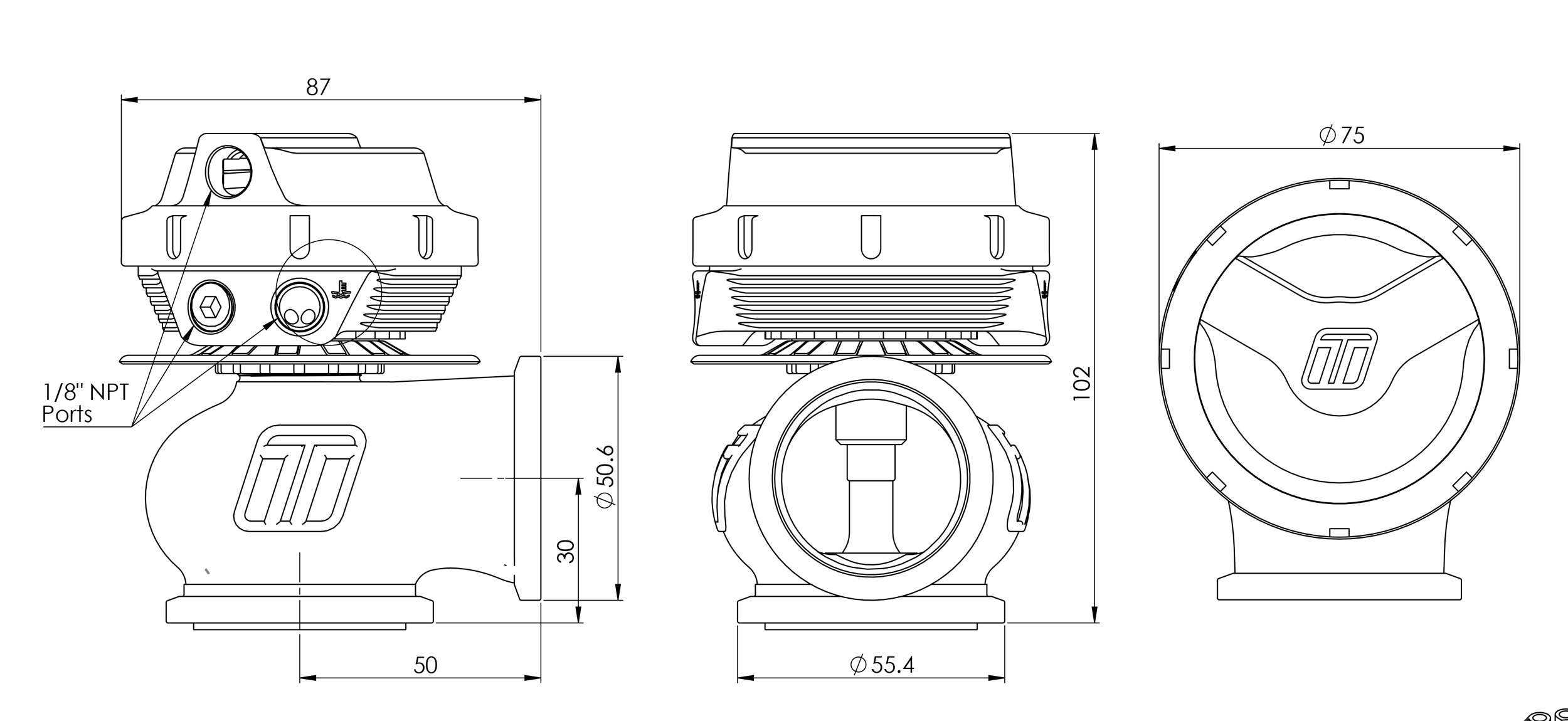

Turbosmart WG40 tegning

Medfølgende deler
• Wastegate (ferdig montert med 14psi fjær)
• SS316 ventilsete i rustfritt stål
• V-bånd inntak
• SS304 sveiseflensinntak
• V-båndsutløp
• SS304 sveiseflensutløp
• Hakemutterverktøy
• Medfølgende fjærer 3, 5, 7, 14 psi fjærsett
• 4x 1/8 ”NPT-plugger (1x installert) / 2x 1/8” NPT-nipler
• Klistremerke
• Instruksjonskort

Valg av wastegate fjær 40mm wastegate

3psi = 0.20bar
5psi = 0.34bar
7psi = 0.48bar
10psi = 0.69bar
12psi = 0.83bar
14psi = 0.97bar
17psi = 1.17bar
19psi = 1.31bar
21psi = 1.45bar
24psi = 1.66bar
26psi = 1,79 bar

Wastegate fjærer
