M54B30 CR 14:1 HPO Motorsport
M54B30 CR 14:1 HPO Motorsport
HPO Motorsport

M54B30 CR 14:1 HPO Motorsport

20.565,00 NOK (inkl. mva)
Ikke medlem: 20.565,00 NOK

16.452,00 NOK (eks. mva)

SKU: HPOAMPM54B30CR4:1

Bestillingsvare- Se vilkår (1-6 uker leveringstid) Bestillingsvare- Se vilkår (1-6 uker leveringstid) .

Del produkt på

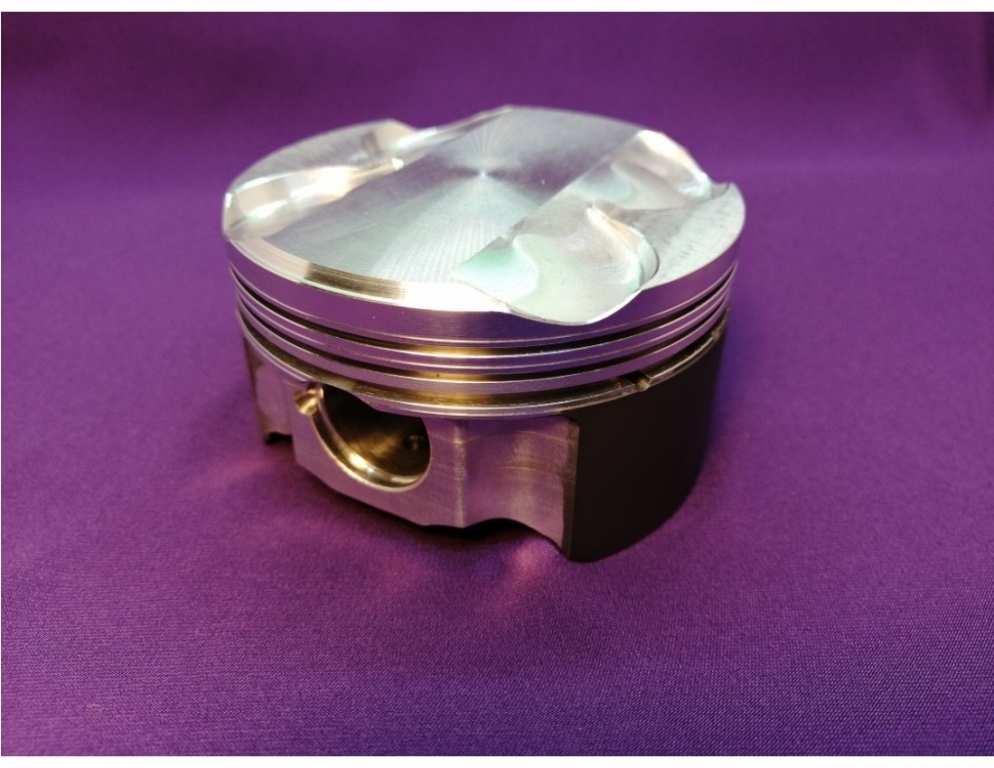

M54B30 Natural Aspiration



4032         Forged

2mm         Dome height

14:1          Compression Ratio

Bore Ø       84.00

Compression height  26.2mm



Valve pockets depth

Intake        3.0mm

Exhaust     3.0mm

Pin             22x56mm

Rings         1.2 1.2 2.0mm

Full kit:

6 pistons, 6 TPR ring sets, 6 wrist pins and 12 clips



Deck Height    211mm (M54B25 and M54B30)

Con Rod          140mm

Stroke              89.60mm

Installation specs for natural aspiration engines
Piston wall clearance 0.05mm
Ring End Gap
Top 0.5mm
Second 0.4mm
Oil 0.25-0.50mm
