Xtreme Performance Clutch

Xtreme Performance - Xtreme Clutch 230mm twin plate kit Toyota Supra

Make
Model
Year
Variant
Engine
Note
Details
TOYOTA SUPRA 1993.05-2002.07 3.0 i Bi-Turbo (JZA80_) 2JZ-GTE 2997 Petrol 210 kW 286 BHP (1993.05 - 2002.07)
TOYOTA SUPRA 1993.05-2002.07 3.0 i Bi-Turbo (JZA80_) 2JZ-GTE 2997 Petrol 243 kW 330 BHP (1993.05 - 2002.07)
TOYOTA SUPRA 1994.03-2002.07 3.0 i Bi-Turbo (JZA80_) 2JZ-GTE 2997 Petrol 240 kW 326 BHP (1994.03 - 2002.07)
27.995,00 NOK (inkl. mva)
29.995,00 NOK Ikke medlem: 27.995,00 NOK

22.396,00 NOK (eks. mva)
23.996,00 NOK

SKU: KTY23682-2E

Utsolgt 7-14 virkedager leveringstid. Utsolgt 7-14 virkedager leveringstid. . Andre vilkår gjelder her! Ordre denne ordren er bestilt i gjelder ikke angrerett, returrett eller kanselering av ordren. Da vil du få ett gebyr 80% av av beløpet av denne varen.

Del produkt på

  • Produktinformasjon

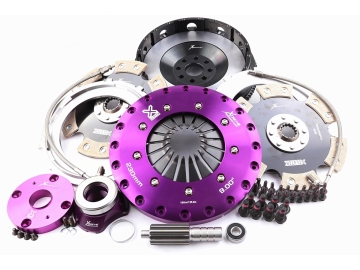

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.



The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.



Product Features:

  • Torque capacity 1800Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
  Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1800Nm 1800Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 8.30kg 8.30kg
Disc Set Static Mass 2.25kg 2.25kg
Friction Thickness New 8mm (0.315") 8mm (0.315")
Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")






Make
Model
Year
Variant
Engine
Note
Details
TOYOTA SUPRA 1993.05-2002.07 3.0 i Bi-Turbo (JZA80_) 2JZ-GTE 2997 Petrol 210 kW 286 BHP (1993.05 - 2002.07)
TOYOTA SUPRA 1993.05-2002.07 3.0 i Bi-Turbo (JZA80_) 2JZ-GTE 2997 Petrol 243 kW 330 BHP (1993.05 - 2002.07)
TOYOTA SUPRA 1994.03-2002.07 3.0 i Bi-Turbo (JZA80_) 2JZ-GTE 2997 Petrol 240 kW 326 BHP (1994.03 - 2002.07)



  • Clutch Disc Diameter (mm)
    230
  • Clutch Disc Spline Count
    14
  • Clutch Disc Spline Diameter (mm)
    32
  • Torque (Nm)
    1800
  • Flywheel Step
    +3.8mm
  • Design
    Twin Plate
  • Stage
    Multiplate - track use only
  • Tech Bulletins
  • Clamp Load
    1350Kg
  • Recommended for
    Motorsport
  • Ring Gear Tooth count

  • Additional infotmation

  • Weight [KG]:
    18.25
